Module 6: Enable self-service with templates

Parasol’s developers can now discover existing services in the catalog and query it with AI. But what about creating new ones? Today, spinning up a new application means copying an old project, manually configuring CI/CD, writing deployment YAML, and hoping you remembered all the security requirements.

Software templates are the golden paths of platform engineering. They encode your organisation’s best practices into a self-service workflow that developers can consume. When a developer uses a template, they get a production-ready application without writing a single line of infrastructure code.

In addition to this, it’s imperative that organizations adopt a trusted secure software supply chain practices. This includes, but isn’t limited to generating and managing SBOMs (software bill of materials) from your own build process and 3rd party libraries, image and dependency vulnerability scanning, artifact signing, SLSA (Supply-chain Levels for Software Artifacts) attestions, signature and attestation validation at deploy time, and continuous policy enforcement on-cluster.

Software templates simplify this process by abstracting away the supply chain security aspects of the pipeline, allowing developers to focus on code while the platform team ensures compliance is in place.

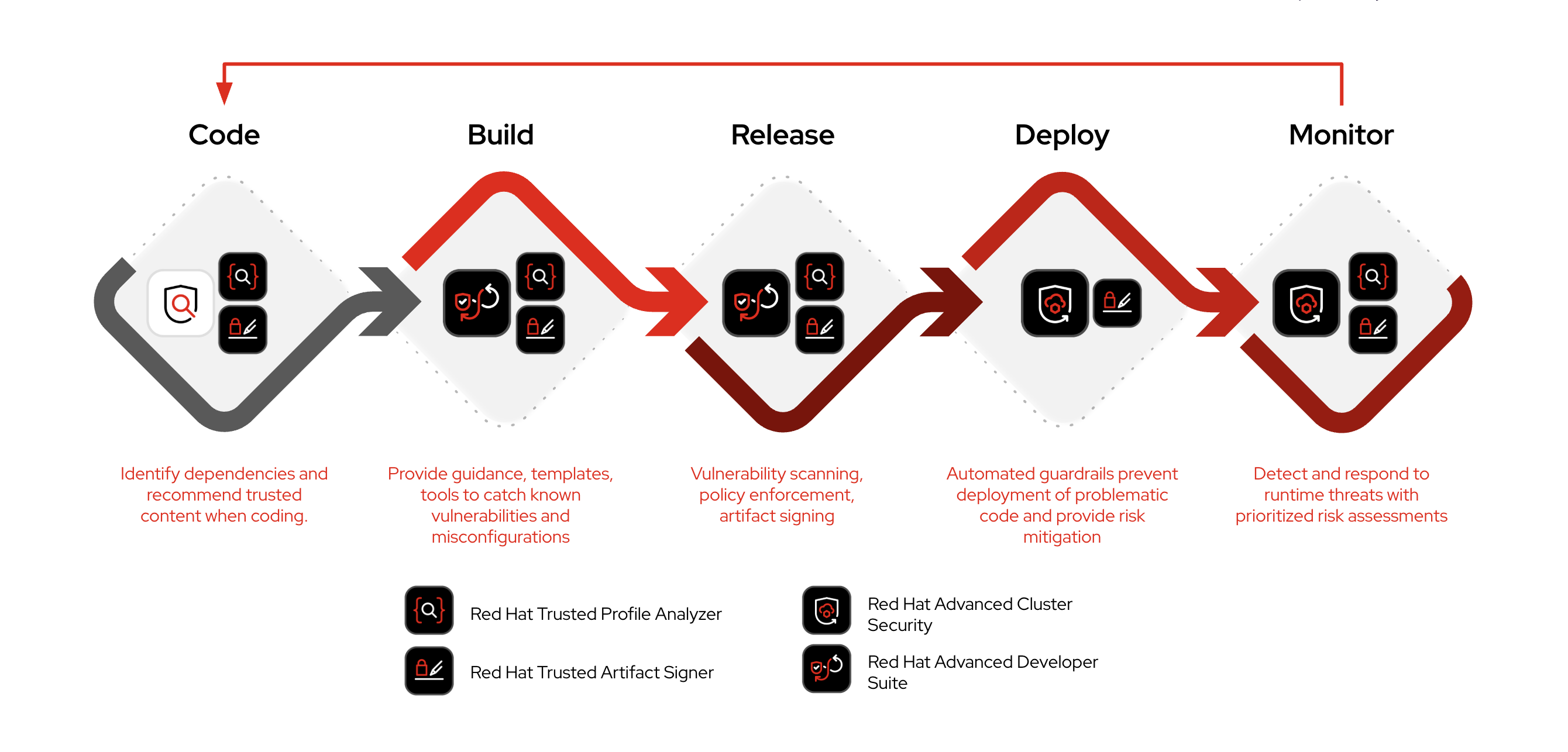

Figure 1. Secure software supply chain pipeline with security gates

What today’s sample template delivers:

Zero YAML required — developers write Java, Node.js, or Python; the platform team’s build and deploy Helm charts handle all infrastructure configuration
Security by default — automated SonarQube code analysis, Red Hat Advanced Cluster Security image scanning, and SBOM generation with Red Hat Trusted Profile Analyzer monitoring
GitOps-driven deployment — changes flow through build → dev → prod namespaces via Argo CD, following the platform team’s promotion workflow
Full observability — ServiceMonitors, network policies, health checks, and resource limits configured automatically

The golden-path template was already imported in the prior module alongside the catalog entities. In this module, you will experience the developer’s self-service workflow by running the template and inspecting the platform infrastructure it creates.

Skipped the previous modules? If you didn’t complete the previous module, you can fast-forward to this module’s starting state by running:

cat <<'EOF' | oc apply -f -
apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: developer-hub
  namespace: openshift-gitops
spec:
  project: pe-workshop
  source:
    repoURL: https://gitlab-gitlab.%openshift_cluster_ingress_domain%/rhdh/ocp-pe-wkshp-rhdh-configs.git
    targetRevision: main
    path: overlays/03-catalog-lightspeed-templates
  destination:
    server: https://kubernetes.default.svc
    namespace: rhdh
  syncPolicy:
    automated:
      selfHeal: true
EOF

Wait for the Application to sync and the Pod to become healthy before continuing:

oc rollout status deployment/backstage-developer-hub -n rhdh

It can take up to 5 minutes for the initial deployment to become ready, as it has to load and configure Developer Hub plugins for the first time.

Learning objectives

By the end of this module, you will be able to:

Understand how software templates enable zero-YAML developer self-service
Run a template to create a production-ready application with automated security gates
Inspect the multi-namespace architecture and CI/CD pipeline created by the platform
Articulate the platform engineering value proposition: standardized infrastructure, security by default, and developer velocity

Exercise 1: Explore the template

Open the Developer Hub tab and log in as dev1 (password: {common_password}) if you are not already logged in as that user
Navigate to the Create page (or click the Self-service button in the global header)
You should see the imported software template

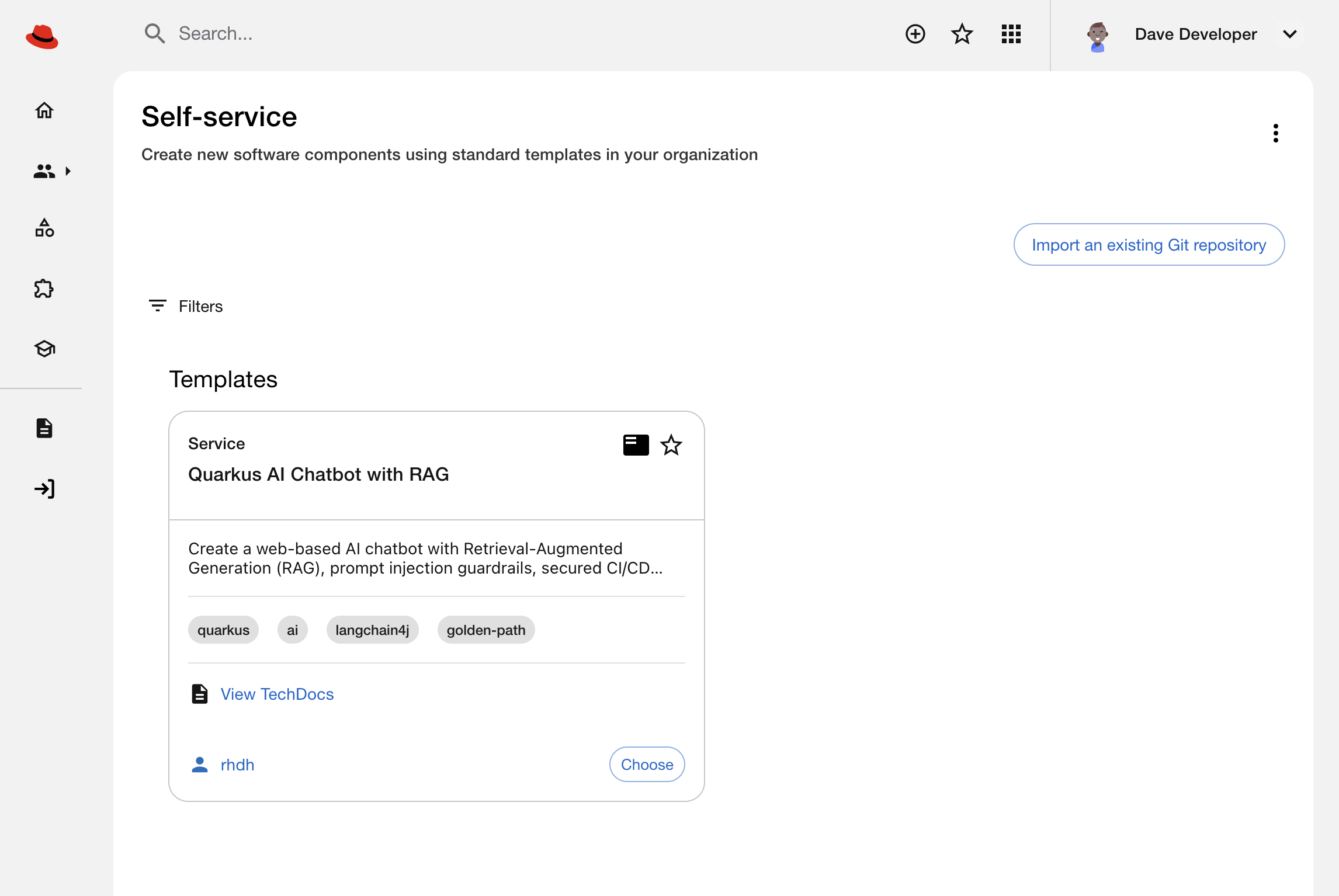

Figure 2. Self-service UI in Developer Hub showing a single Software Template

Review the template.yaml file in the quarkus-chatbot-rag template repository in GitLab to understand the golden path it implements. The specific sections are in the template.yaml file:

The template.yaml file is a manifest that Developer Hub reads to implement the self-service software template. Specifically, it defines parameters, steps, and outputs that the Platform Team uses to craft the self-service flow. Learn more by reading the Backstage Software Templates documentation.

Captures user supplied parameters — such as the application name, group ownership, and a short description (for the generated catalog-info.yaml)
Scaffolds application code — generates a Quarkus application with LLM client dependencies and External Secrets integration for API keys
Creates source and GitOps repositories — sets up two GitLab repos: one for Java source code, another for GitOps manifests (Helm chart references and values)
Registers the new application with the app-of-apps — pushes bootstrap configuration to the infra-app-of-apps repository (more on this in a moment), which triggers Argo CD to deploy the application infrastructure
Registers in catalog — adds the component to Developer Hub with ownership, dependencies, and CI/CD integration

The app-of-apps is a special Argo CD Application, owned by the Platform Team, that manages rollout of GitOps manifest repositories like the one you just created. Visit the rhdh/infra-app-of-apps repository in GitLab and read the README.md if you want to learn about the implementation specifics. Argo CD automatically deploys standardized infrastructure for the developers using the platform’s build-deployer and app-deployer Helm charts:

Build namespace with Tekton pipeline, SonarQube scanning, ACS image scanning, SBOM generation, and External Secrets for credentials
Dev and Prod namespaces with Deployments, Services, Routes, network policies, ServiceMonitors, and resource limits

The following is a visual depiction of the output of the software template - this illustrates the value of codifying your processes; developers complete a form and the platform handles the rest!

flowchart TB User([👤 Developer]) -->|Run Template| RHDH[Red Hat Developer Hub] RHDH -->|Create Source Repo| GL_SRC[GitLab: Java Source] RHDH -->|Create GitOps Repo| GL_GITOPS[GitLab: GitOps Source] RHDH -->|Update with new GitOps Repo Ref| GL_INFRA[GitLab: App-of-Apps] GL_INFRA -.->|Watched by| ARGO[Argo CD] ARGO -->|Managed Build| BUILD_NS BUILD_NS -->|Deploys| PIPELINE[Tekton Pipeline + EventListener] GL_SRC -->|Webhook on Push| PIPELINE PIPELINE -->|Build & Scan| BUILD[Maven + SonarQube + ACS] PIPELINE -->|Push Image| QUAY[Quay Registry] PIPELINE -->|Update Manifest Image Tag| GL_GITOPS GL_GITOPS -.->|Watched after App-of-Apps Update| ARGO ARGO -->|Managed Deployment| DEV_NS ARGO -->|Managed Deployment| PROD_NS DEV_NS -->|Pulls Image| QUAY PROD_NS -->|Pulls Image| QUAY DEV_NS --> OCP_DEV[OpenShift: Running Pod] PROD_NS --> OCP_PROD[OpenShift: Running Pod] RHDH -.->|Register Component| CATALOG[Developer Hub Catalog] style RHDH fill:#ee0000,stroke:#fff,stroke-width:3px,color:#fff style User fill:#f5f5f5,stroke:#333,stroke-width:2px,color:#333 style GL_SRC fill:#fc6d26,stroke:#fff,stroke-width:2px,color:#fff style GL_GITOPS fill:#fc6d26,stroke:#fff,stroke-width:2px,color:#fff style GL_INFRA fill:#fc6d26,stroke:#fff,stroke-width:2px,color:#fff style ARGO fill:#ef7b4d,stroke:#fff,stroke-width:2px,color:#fff style QUAY fill:#40b4e5,stroke:#fff,stroke-width:2px,color:#fff style OCP_DEV fill:#ee0000,stroke:#fff,stroke-width:2px,color:#fff style OCP_PROD fill:#ee0000,stroke:#fff,stroke-width:2px,color:#fff style CATALOG fill:#ee0000,stroke:#fff,stroke-width:2px,color:#fff

Exercise 2: Run the template

Enough exposition, let’s experience the software template as a developer would.

Click Choose on the template to start the wizard

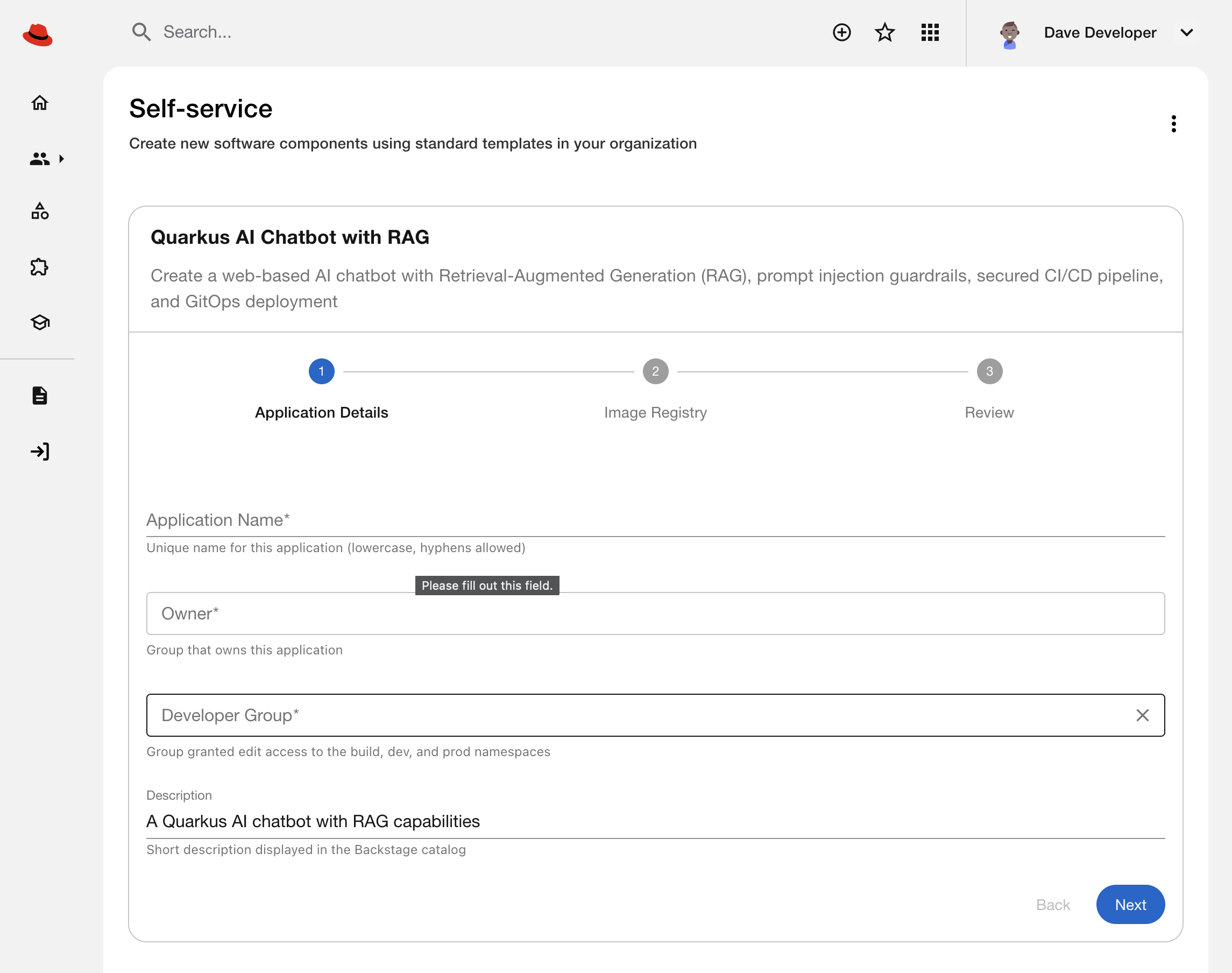

Figure 3. Template input parameters being captured in Developer Hub
Fill in the parameters:
- Application name: Choose a name (e.g., parasol-chatbot)
- Owner: Select group:default/developers in the dropdown
- Developer Group: Select group:default/developers in the dropdown
- Description: The default is fine
- Accept the defaults for other fields
Click Next. Leave the image registry settings unchanged, then proceed to the Review screen.
Click Create to execute the template. Watch the progress as the template:
- Scaffolds the application code
- Creates the GitLab repository
- Configures the CI/CD pipeline
- Registers the new component in the catalog

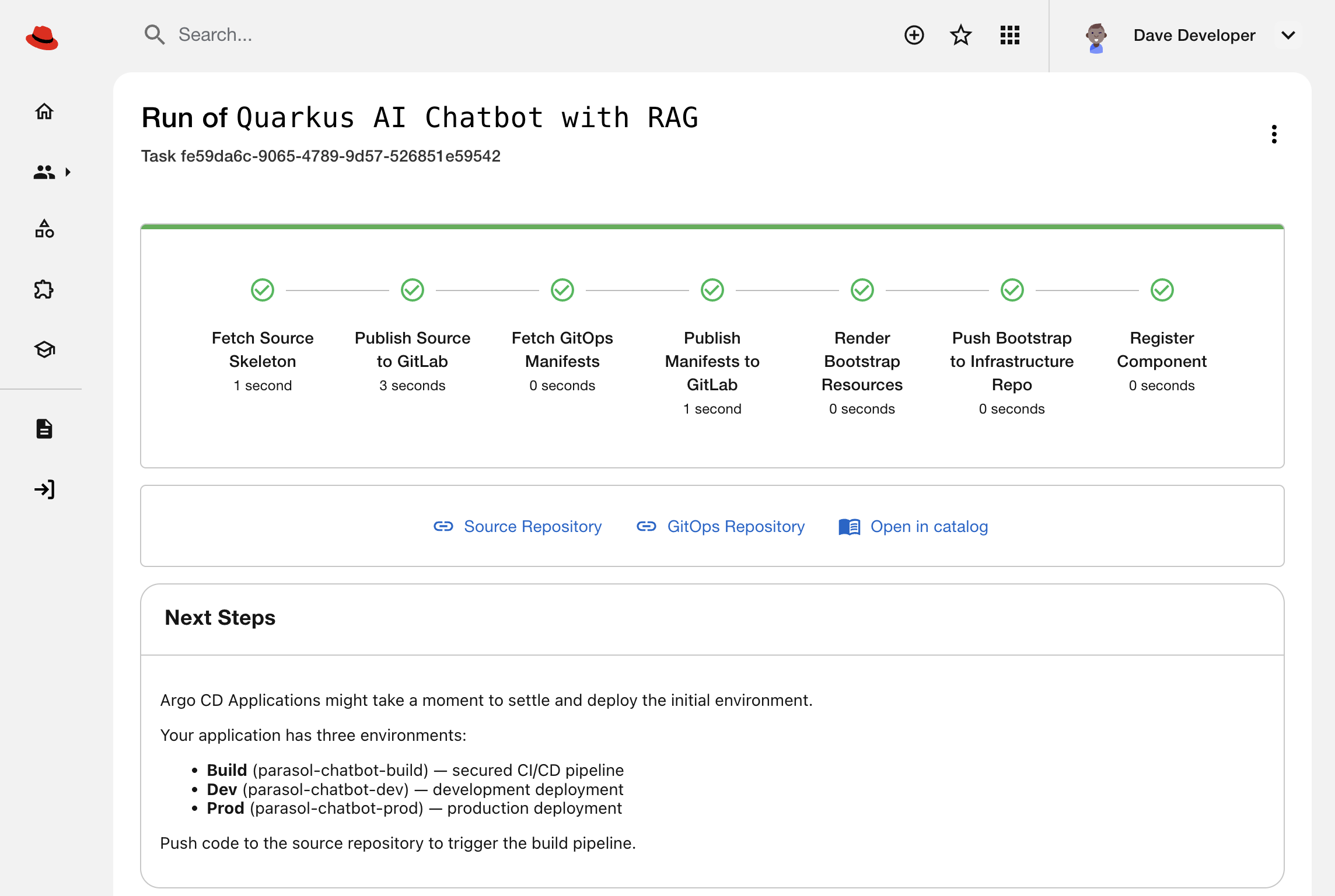

  Figure 4. Developer Hub showing a finished run of the Template
Once complete, three links are printed. Explore the generated repositories:
- Click the Source Repository link — notice there’s no Kubernetes YAML, just Java application code that uses the Quarkus framework

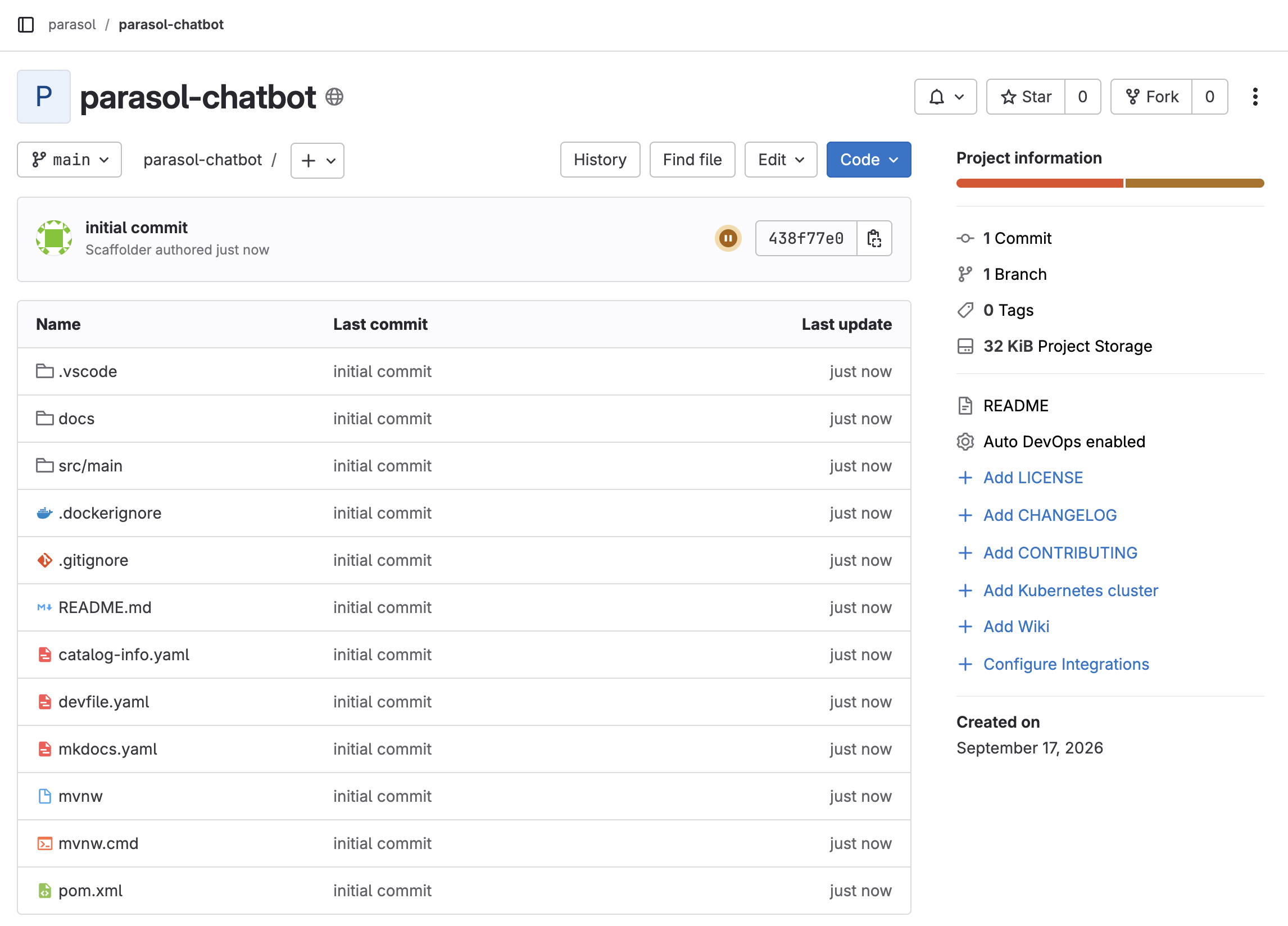

  Figure 5. New GitLab repository containing Quarkus code and a catalog-info.yaml
- Click the GitOps Repository link — the app/ and build/ folders contain minimal Helm chart references and values.yaml overrides. The Chart.yaml files reference the platform team’s build-deployer and app-deployer charts that do the heavy lifting to setup your environments

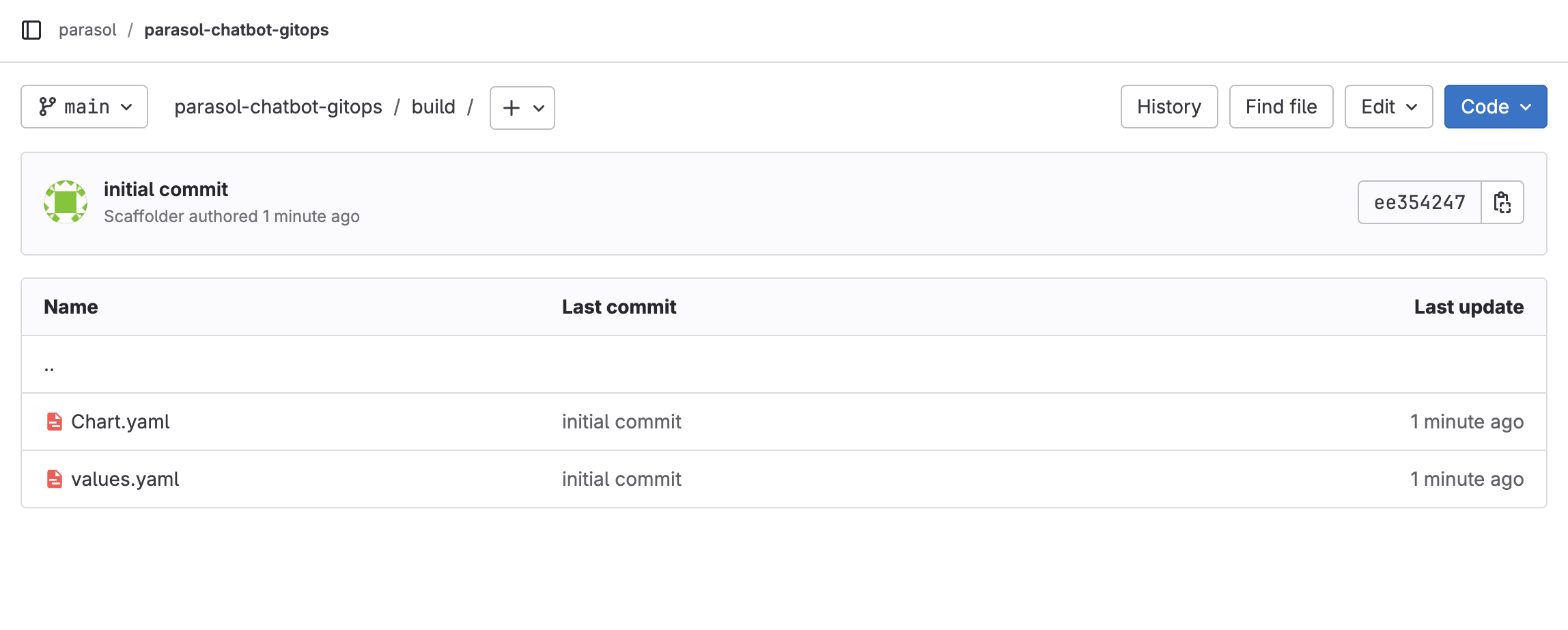

  Figure 6. GitLab GitOps repository with minimal build YAML

Continue to the next section, where we’ll use the Open in catalog link to see what else was created by the software template.

Exercise 3: Inspect what the platform built

The template created infrastructure that would take hours to configure manually. Let’s explore it through Developer Hub and the terminal.

Click the Open in catalog link from the template output to view your new component in Developer Hub. Note that it has links to the source code and component’s documentation, as well as additional tabs with more information

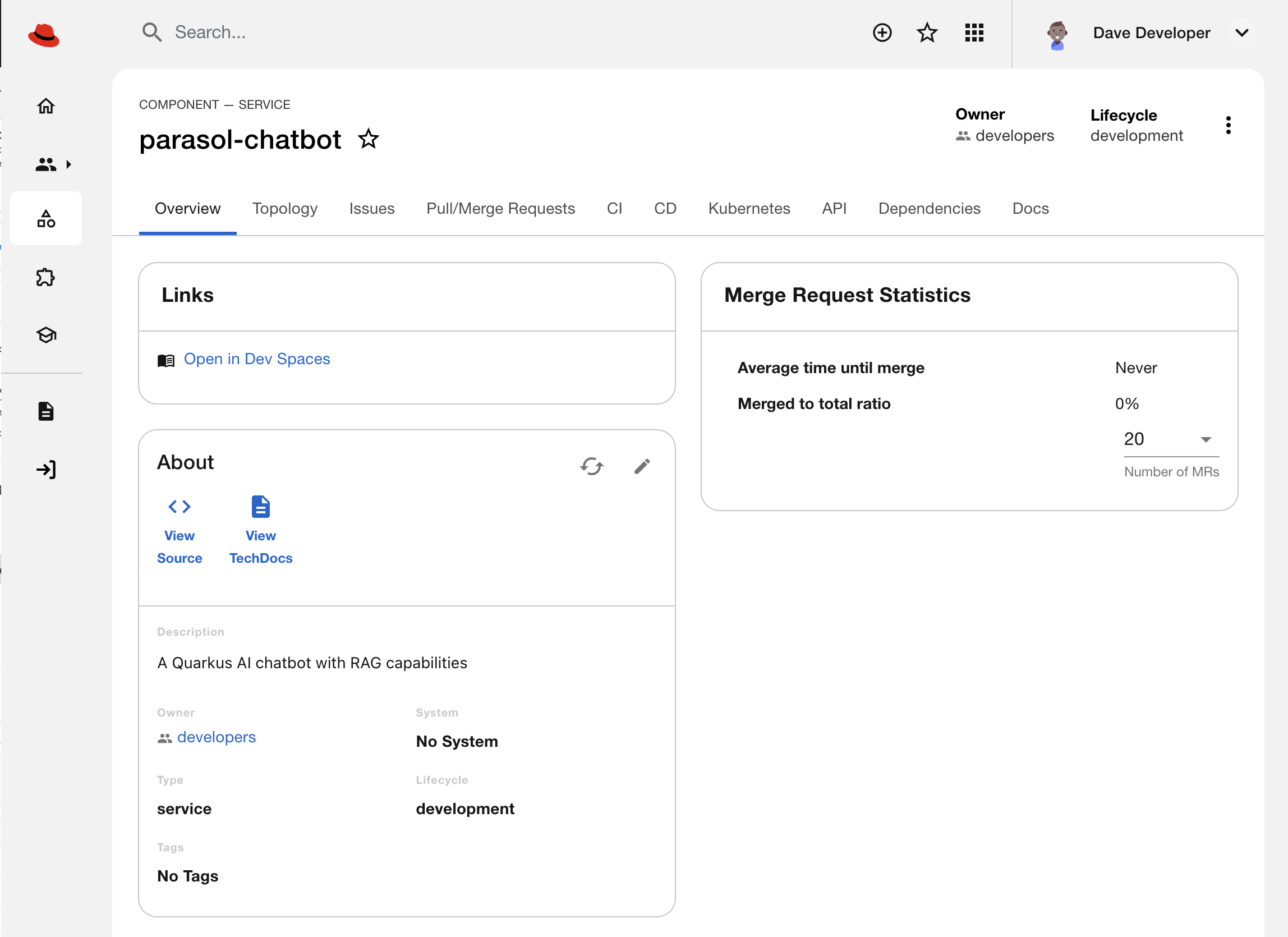

Figure 7. Parasol Chatbot entity in the Developer Hub catalog

Verify the three namespaces created for your application using the terminal:

oc get projects | grep parasol-chatbot

You should see:

parasol-chatbot-build — CI/CD infrastructure (Tekton pipelines, External Secrets, build cache)
parasol-chatbot-dev — development deployment managed by Argo CD

parasol-chatbot-prod — production deployment (promoted via GitOps)

If the namespaces are not listed, wait a minute and retry the command. There’s a short delay between running the template and Argo CD rolling out the infrastructure. You can speed it up by finding the infra-app-bootstraps* Application in Argo CD and clicking Refresh.

In Developer Hub, click the CI tab to watch the pipeline execution:
- The Tekton pipeline runs SonarQube analysis, builds the image, scans it with ACS, generates an SBOM, and uploads to TPA
- Developers get visibility into build status without leaving Developer Hub

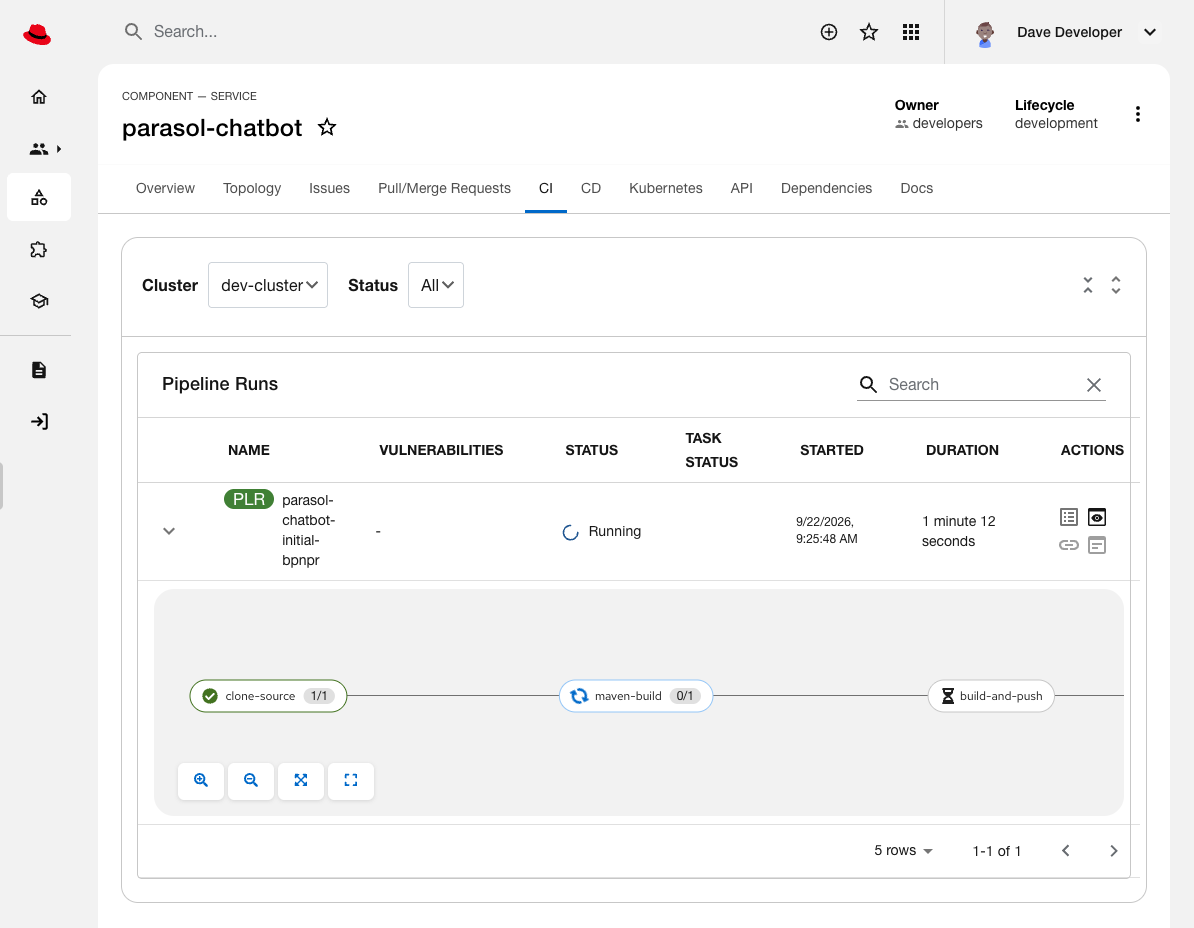

  Figure 8. Tekton PipelineRun as seen in Developer Hub

  Click on the running PipelineRun to view the detailed task execution:
  - maven-build — compiles the application
  - sonar-scan — static code analysis for vulnerabilities
  - generate-sbom — creates a Software Bill of Materials
  - acs-image-scan — scans the container image for CVEs
  - acs-image-check — enforces security policy gates
  - upload-sbom-to-tpa — registers the SBOM with Trusted Profile Analyzer for continuous monitoring
  - rollout-restart — updates the dev environment to use the newly built image
Click the CD tab to verify that build, dev, and prod Applications were registered in Argo CD:

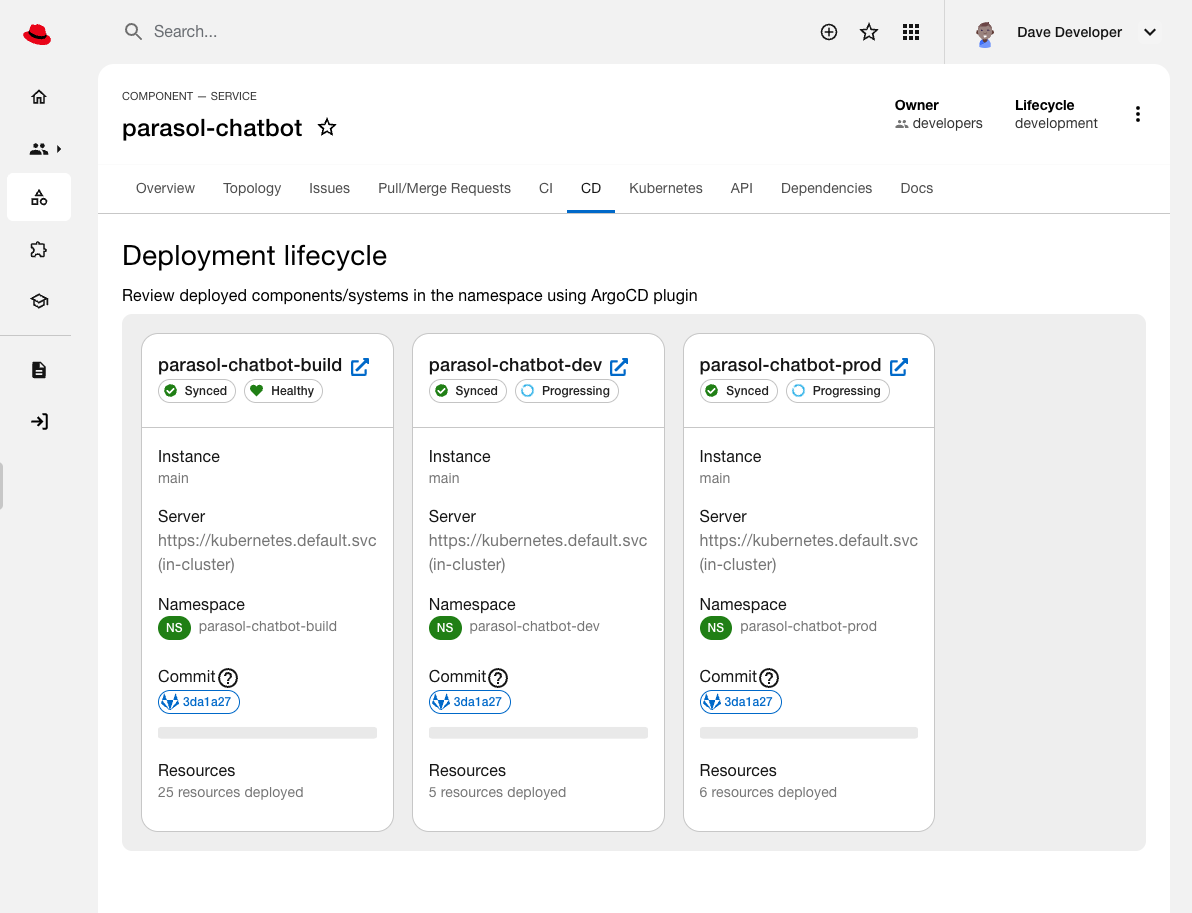

Figure 9. Argo CD Applications that manage environments as seen in Developer Hub
Click the Topology tab to explore the dev environment’s deployment:

Both dev and prod environments will show error states until the first build is complete.

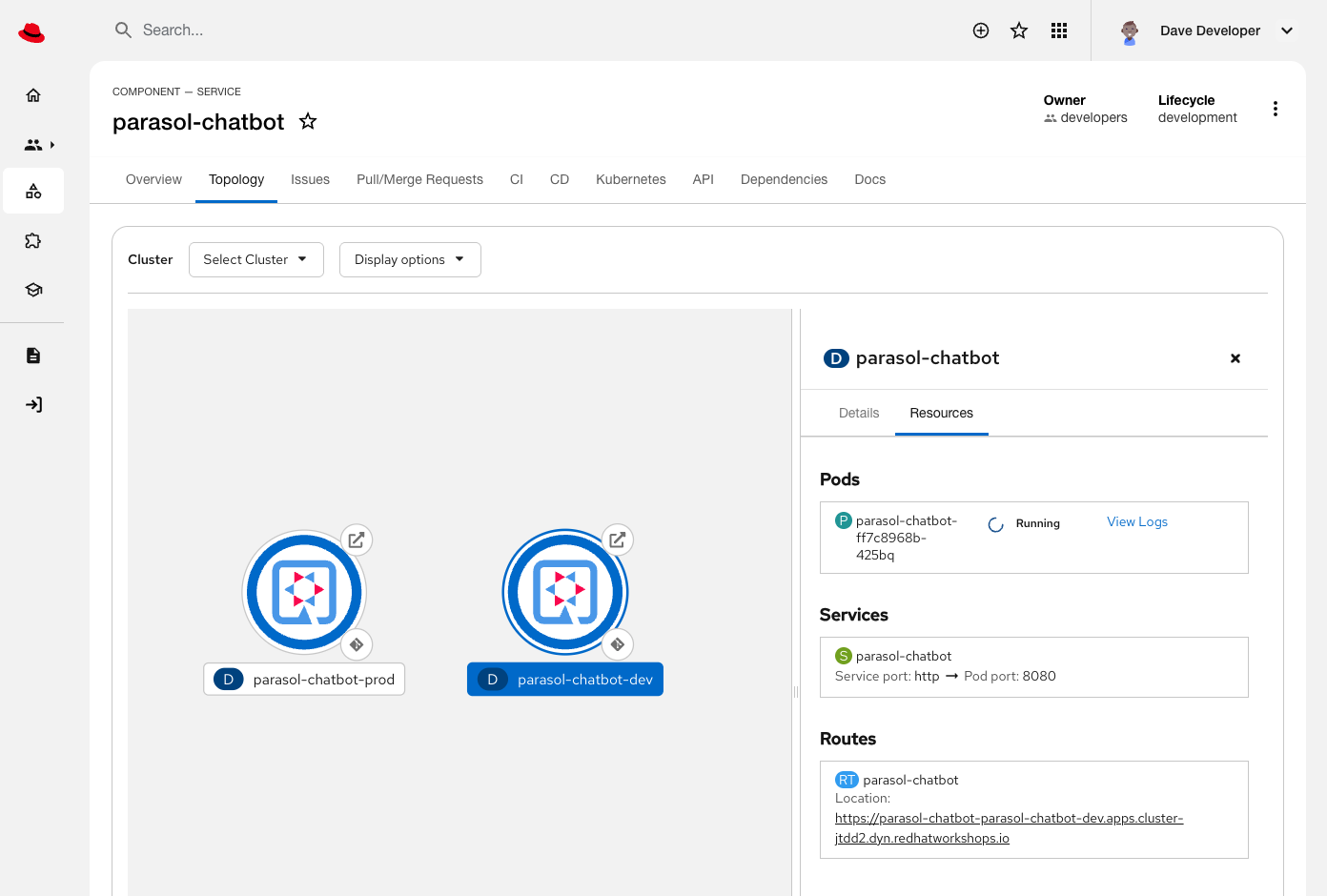

Figure 10. Production and Development applications in the Topology View, with Development environment Route, Service, and Pod details shown

Module summary

This is where platform engineering delivers transformational impact.

What the developer experienced:

Filled in a simple form (application name, description)
Clicked "Create"
Got a production-ready application in minutes

What the platform team delivered invisibly:

Zero infrastructure code for developers — no Dockerfiles, no Kubernetes YAML, no pipeline definitions. The build-deployer and app-deployer Helm charts encode the platform team’s standards.
Security by default, not by request — every application gets SonarQube analysis, ACS vulnerability scanning, SBOM generation, and continuous monitoring via TPA. Developers can’t skip the security gates.
Standardized deployment patterns — network policies, resource limits, health checks, observability (ServiceMonitors), and autoscaling configured consistently across all applications.
GitOps-driven promotion — changes flow through build → dev → prod namespaces following the platform team’s workflow. Developers push code; Argo CD handles deployment.
Integrated toolchain — External Secrets Operator injects credentials from Vault, Tekton triggers builds from GitLab webhooks, Argo CD syncs from GitOps repos, and Developer Hub provides unified visibility.

What this means for Parasol:

Consistent compliance — security and quality gates applied uniformly; no "forgot to add the SBOM step" incidents
Reduced cognitive load — developers focus on business logic in their language of choice; infrastructure is handled
Easier maintenance — platform team updates the Helm charts once; all applications benefit from improvements
Faster time to market — new applications in minutes instead of weeks spent writing YAML and configuring pipelines

This is the multiplier effect of platform engineering: build the golden path once, enable hundreds of teams to run it reliably.

In the next module, you will experience how developers can use a standardized Cloud Development Environment (CDE) provided by OpenShift Dev Spaces to develop applications with AI assitance in a hosted VS Code environment hosted on OpenShift.
